G1C GPS Tracker
Quick Start Guide
1. Activate
Open shieldgps.co/activate in a web browser and follow the activation steps. You will need your tracker’s 15 digit IMEI number (printed on the back of the device and the side of the box).

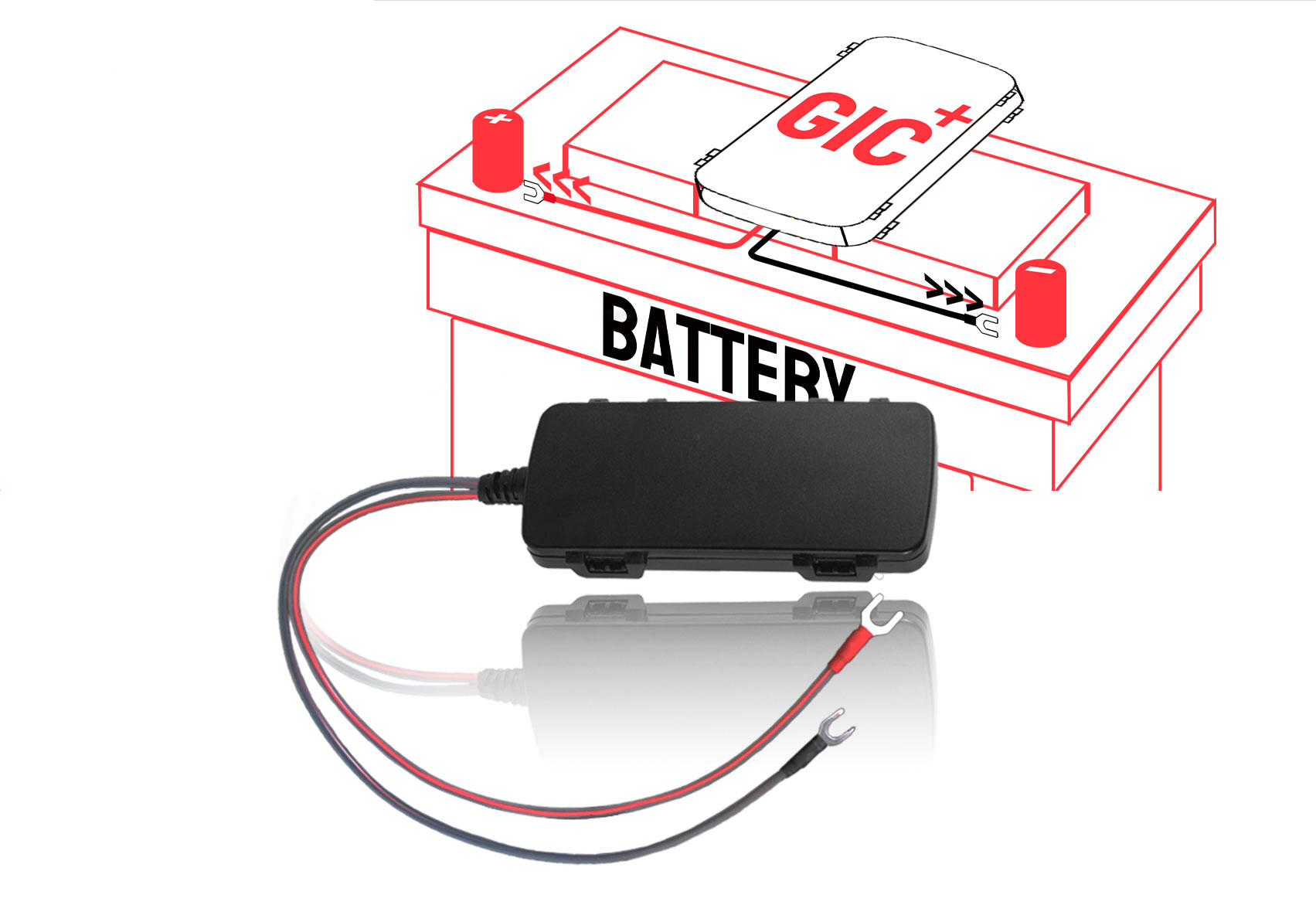

2. Connect the tracker to your vehicle
- Locate and access the battery in your vehicle
- Ensure the surface of the battery is clean
- Attach the device on the battery using the double side tape, so that the GNSS antenna and LEDs indicators are facing up
- Connect the positive and negative power wires directly to the battery terminals
3. Login & Track
Download the ShieldGPS tracking app for Android, iOS or Web
Login to our app or shieldgps.co/dashboard using the email address and password you entered during activation. Within 15 minutes your tracker should appear.

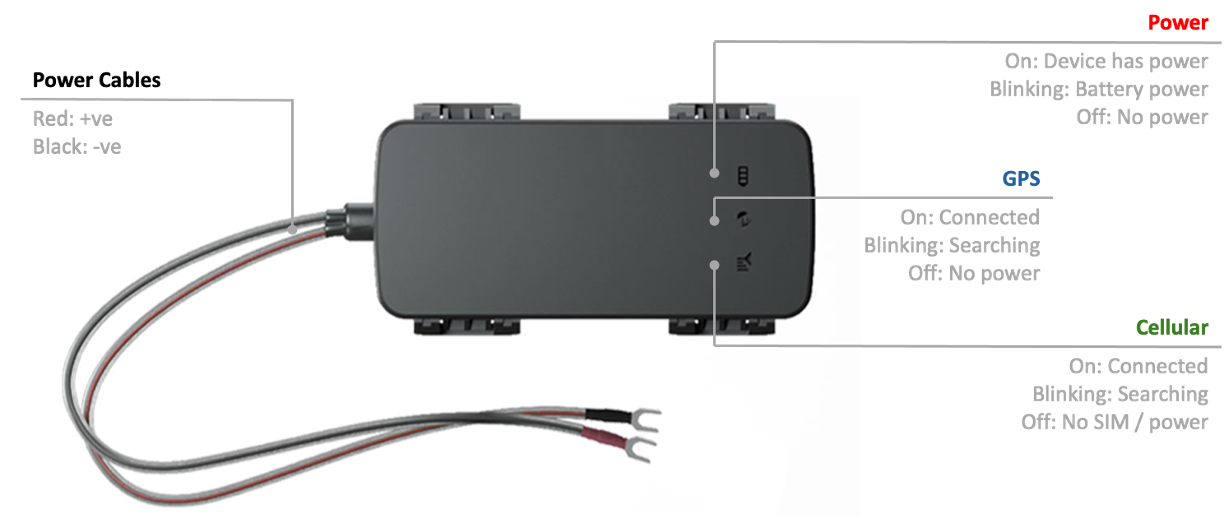

Getting To Know Your Tracker
Troubleshooting
Need Help?
Shield Technologies Ltd hereby declares that the device is in compliance with the essential requirements and other relevant provisions of European Directive 2014/53/EU (RED).
The original Declaration of Conformity may be found at https://shieldgps.co/declaration-of-conformity
Technical Description of built in RF module: GSM Bands 2G 900/1800 MHz, 4G FDD-LTEB1/B3/B5/B8 & GPS. Transmitted Power: Max.33.00 dBm (GSM900)
---
